Eceng K12 Water Bottle Automatic Blowing Machine 22000 - 26000BPH

Brand Name : Eceng

Model Number : K12

Certification : CE ISO

Place of Origin : Jiangsu, China

MOQ : 1set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 500 Set/Sets per Year

Delivery Time : 60days

Packaging Details : standard export wooden case or according to your requirements

Plastic Processed : PET

Application : bottle

Blow Moulding Type : Stretch Blow Moulding

Automation : Automatic

Key Selling Points : Automatic blow molding machine

Warranty of core components : 1 Year

Applicable Industries : Manufacturing Plant

Contact Now

Eceng K12 Automatic Water Bottle Blowing Machine, 22000-26000BPH

Product Parameters

Model K12

Bottle type specification

Cavity12
Max.volume200ml-750ml
Bottle mouth maximum overall diameter25-29mm NECK
Bottle biggest diameter75mm
Bottle maximum height180mm

Capacity specification

Theory output22000~26000BPH
Bottle type volume600ML
Bottle type weight13.5g
Bottle typeRound
Power specificationLight tube quantity32pcs
Light tube power1.75KW
Maximum heating power56KW
All electric machine installation71KW
Actual consumption30%--60%

Air pressure specification

Work pressure5-6kg/cm2
Blow bottle pressure25-45kg/cm2
Higher -pressure gas consumption24000Ltr/min
Forzen water specificationWork pressure5-6 kg/cm2
Temperature range10℃
Consumption12000kcal/hr
Temperature range10℃
Forzen water flow180L/min
Machine specificationMachine size9.0x2.0x2.3
Machine weight10.0ton


Eceng K12 Water Bottle Automatic Blowing Machine 22000 - 26000BPH

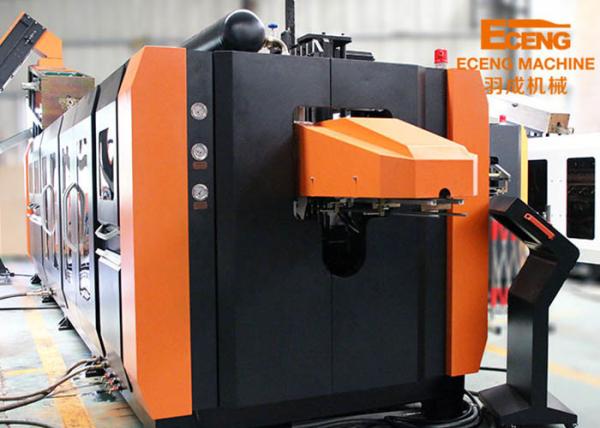

The 12 Cavity fully automatic high-speed bottle blowing machine is a state-of-the-art machine designed to cater to the needs of the modern-day bottling industry. With a production capacity of 22,000-26,000 bottles per hour, this machine is capable of meeting even the most demanding production requirements.
Equipped with advanced automation technology, the machine can produce high-quality bottles with superior finish and accuracy. It has a user-friendly interface that allows operators to easily adjust settings and monitor production in real-time.
The 12-cavity design of the machine enables it to work at high-speed, producing bottles quickly and efficiently. The machine is capable of handling different types of plastic materials, including PET, PP, and HDPE, making it a versatile solution for bottling companies.
With its high-speed production capabilities, the 12-chamber fully automatic high-speed bottle blowing machine is an ideal solution for companies looking to increase their production output, improve efficiency, and reduce costs.
